The Internet

The Internet

The Internet is a global network that connects computers all around the world. It consists of:

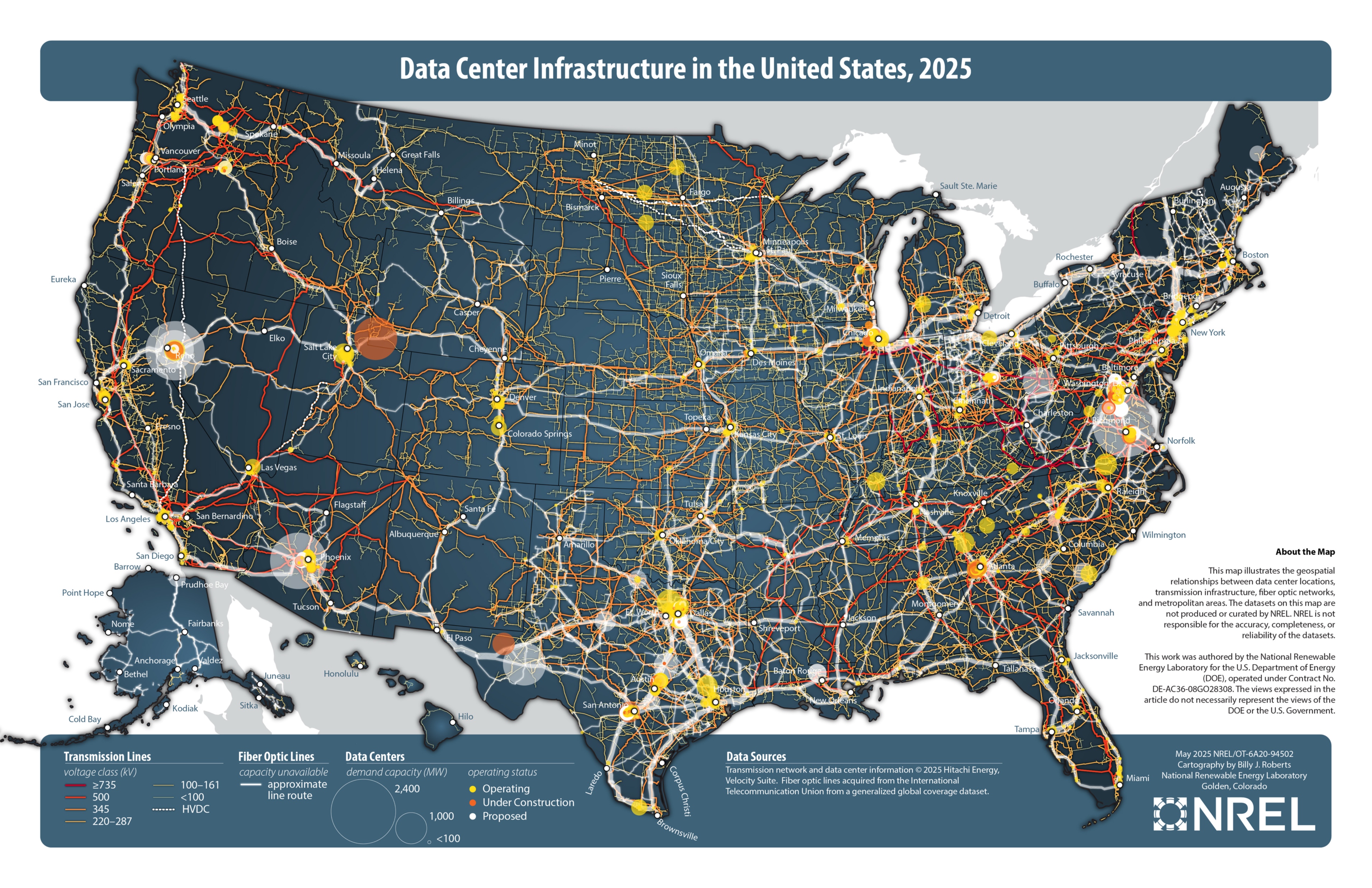

Physical infrastructure: Cables under the ground and ocean, routers that direct traffic, and other hardware that connects everything together
Communication protocols: Standardized rules and methods that allow computers to exchange information with each other

The World Wide Web (WWW) is what most people think of when they hear "the Internet" - but it's actually just one part of the Internet! The WWW is all the websites and web applications that we can access through our web browsers.

Some things on the WWW:

Websites (like Facebook, YouTube, or Wikipedia)
Web applications (like Google Docs or Gmail's web interface)
Web services that apps use to work (like weather data services)

Some things that use the Internet but are NOT part of the WWW:

Email
FTP (File Transfer Protocol, a way to transfer files between computers)
SSH (Secure Shell, a secure way to connect to other computers)
DNS (Domain Name System, the system that converts website names to addresses)

The WWW is one part of the larger Internet ecosystem.

URLs

URL = Uniform Resource Locator

We will use the URL diagram below as a reference point for the rest of this section.

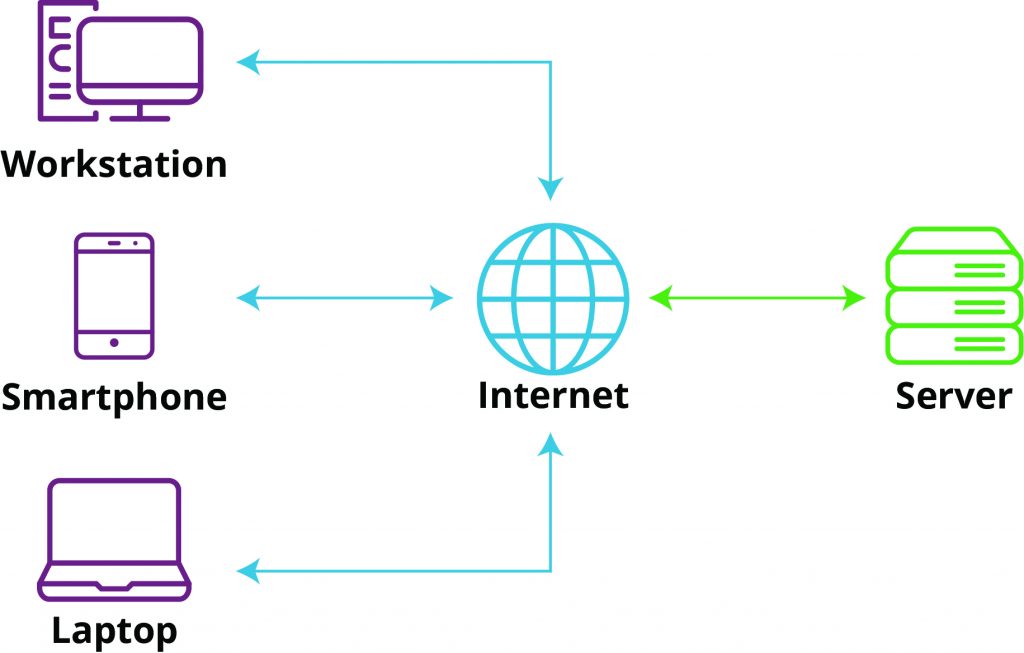

Client-Server Model

A client server model is a way of organizing software so that one program (the client) requests services from another program (the server).

Client = Browser or a program that requests data from a server (e.g. an "app" on your phone)

Server = A program that provides data to a client.

The term "server" is used in two main ways:

As software: A web server is a program that listens for incoming requests and handles them - just like any other program on a computer.

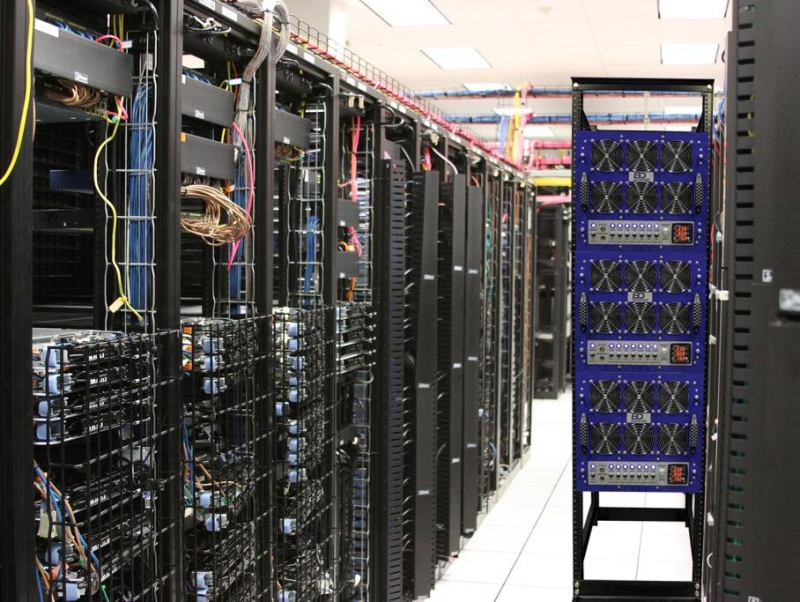

As hardware: A "server" can be the actual physical computer that runs server software. While there are specialized computers built specifically to be servers (like the ones in data centers), technically any computer can act as a server - even your laptop could be one!

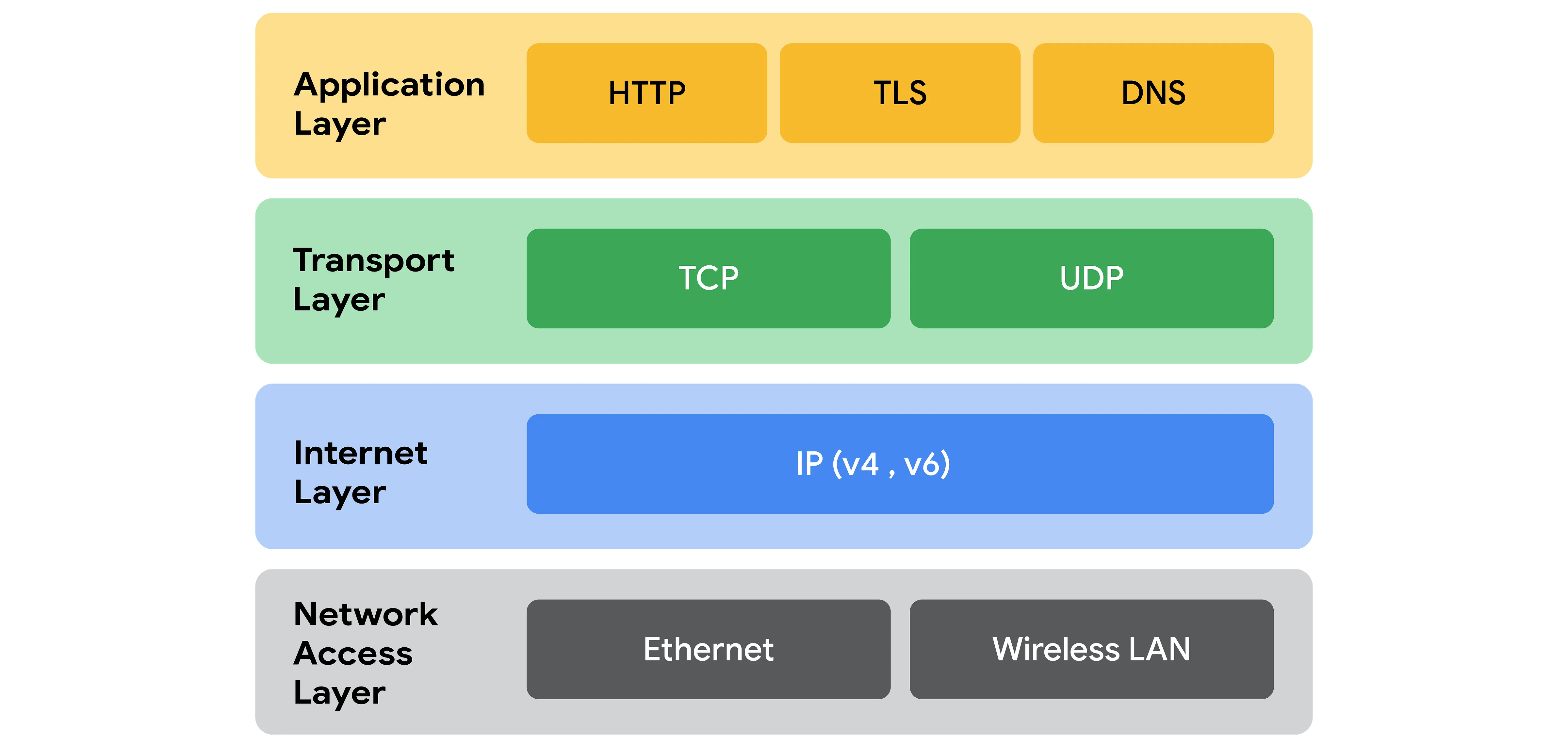

Internet Protocol Suite

Set of "rules" about how different layers of the Internet communicate.

HTTP and HTTPS

HTTP (Hypertext Transfer Protocol) and HTTPS (HTTP Secure) are the main protocols used for communication on the World Wide Web. They define how messages are formatted and transmitted between clients and servers.

When you visit a website:

Your browser (the client) sends a web request to get information
The web server processes this request
The server sends back a web response with the requested information

The only difference between HTTP and HTTPS is that HTTPS encrypts the data being sent, making it secure from tampering or snooping.

Want to see HTTP in action? Try this:

Press F12 to open your browser's developer tools
Click the "Network" tab
Refresh this page

You'll see all the requests and responses between your browser and our web server. Each entry shows:

The requested resource (HTML, images, CSS, etc.)
Response status
Size of the data
Time taken

Click any entry to see detailed information about that request and response.

TCP/IP

Imagine you sent a message to a friend using letters through regular post office mail, but you sent it one word at a time. You'd need a way to determine things like:

What's the address of the recipient?
What's the return address of the sender?
How many words are in the overall message?
Did any letters get lost in the mail?
Was the message corrupted or tampered with in transit?

TCP/IP is the fundamental protocol suite of the Internet, and it helps to address these concerns.

TCP (Transmission Control Protocol)

Ensures data transmission between devices is reliable:

Breaks large messages into smaller packets
Makes sure all packets arrive correctly
Puts the packets together in the right order
Requests retransmission of any lost packets

IP (Internet Protocol)

Handles addressing and routing of data:

Gives every device on the Internet a unique address (IP address)
Routes packets from sender to receiver across the network

Every device on the Internet needs an IP address:

Your home network has a public IP address visible to the Internet
Devices inside your network (phones, laptops) have private IP addresses

Try checking your computer's IP addresses using the commands below:

## BASH
ifconfig

## PowerShell
ipconfig

You'll see both IPv4 (like 192.168.1.1) and newer IPv6 (like fe80::215:5dff:fe15:fcaf) addresses.

When you make a request to a website, your IP request is included in the request packet. This lets the server know where to send the response.

Domain Name System (DNS)

DNS converts domain names into IP addresses:

google.com → 172.217.14.206

DNS exists because:

Computers communicate using IP addresses
Domain names are easier for people to remember and type
Anyone can purchase a domain name for an annual fee.

When you first access a website your computer must check a DNS server to get the IP address associated with that address.

Where are DNS Servers?

We can see where some of the major DNS namespace servers are using sites like:

whatsmydns.net

The ping command is used to check the connection to a server. It sends a series of packets to the server and measures the time it takes for them to return.

To stop pinging, press Ctrl+C.

Try pinging Google's IP address and paste it into your browser's address bar.

## BASH / PowerShell
ping google.com

Customizing the hosts file

In Windows you can modify your DNS entries by changing the hosts file at:

C:\Windows\System32\drivers\etc

Let's try changing it so that "google.com" takes us to a different website.

Putting it All Together: A Round Trip

When you visit a website, here's what happens:

Your browser sends a request to a web server
The request is broken into packets and sent across the Internet
The web server receives the packets and prepares a response
The response is broken into packets and sent back across the Internet
Your browser receives and reassembles the packets, then displays the page

The Internet is decentralized - packets can take different routes to their destination. If some network connections fail, packets will be automatically routed through working connections instead.

VPN, Proxy, and Private Browsing

Private Browsing

Convenience feature in browsers to clear cookies and cache, not save history, etc.

Meant to give some degree of privacy to users sharing a single device.

Does not hide the origin of requests.

Proxy

A proxy server is a server that acts as an intermediary for requests from clients seeking resources from other servers.

Meant to hide the origin of requests.

When I visit a website through a proxy, the request will go to the proxy server first, and then to the website.

VPN

VPN = Virtual Private Network

You are "inside" a private network, and the VPN creates a secure tunnel to the Internet.

Meant to provide access to a private network (private IP addresses). E.g. - none of you can "talk" to my lab machine.

When I VPN to Ivy Tech then visit a website, the request will go to the Ivy Tech network first, and then to the website.

Password Management

Practical Password Management Tips:

Use multifactor authentication whenever possible
Use a unique password for each site; DO NOT USE THE SAME PASSWORD FOR MULTIPLE SITES
